Electronic Systems Poster Set of 5

The Electronic Systems Poster Set of 5 is a comprehensive collection of A1 educational wall charts designed to support teaching and learning across Design & Technology, STEM, systems and control, and introductory electronics courses. Each poster combines clear curriculum-aligned content with bright, engaging visuals to help students grasp complex concepts quickly and confidently.

Covering the core principles of electronics—from input, process and output devices through to PCB manufacturing, soldering techniques, material properties, and resistor colour codes—this poster set provides an essential reference point for both theory lessons and hands-on project work. The large A1 size ensures excellent readability from across the room, making them ideal for classrooms, workshops, labs and hallway displays.

This high-value teaching resource is tailored to support students in Years 7–12 as they explore electronic circuits, system behaviour, component selection, and modern manufacturing methods used throughout the electronics industry.

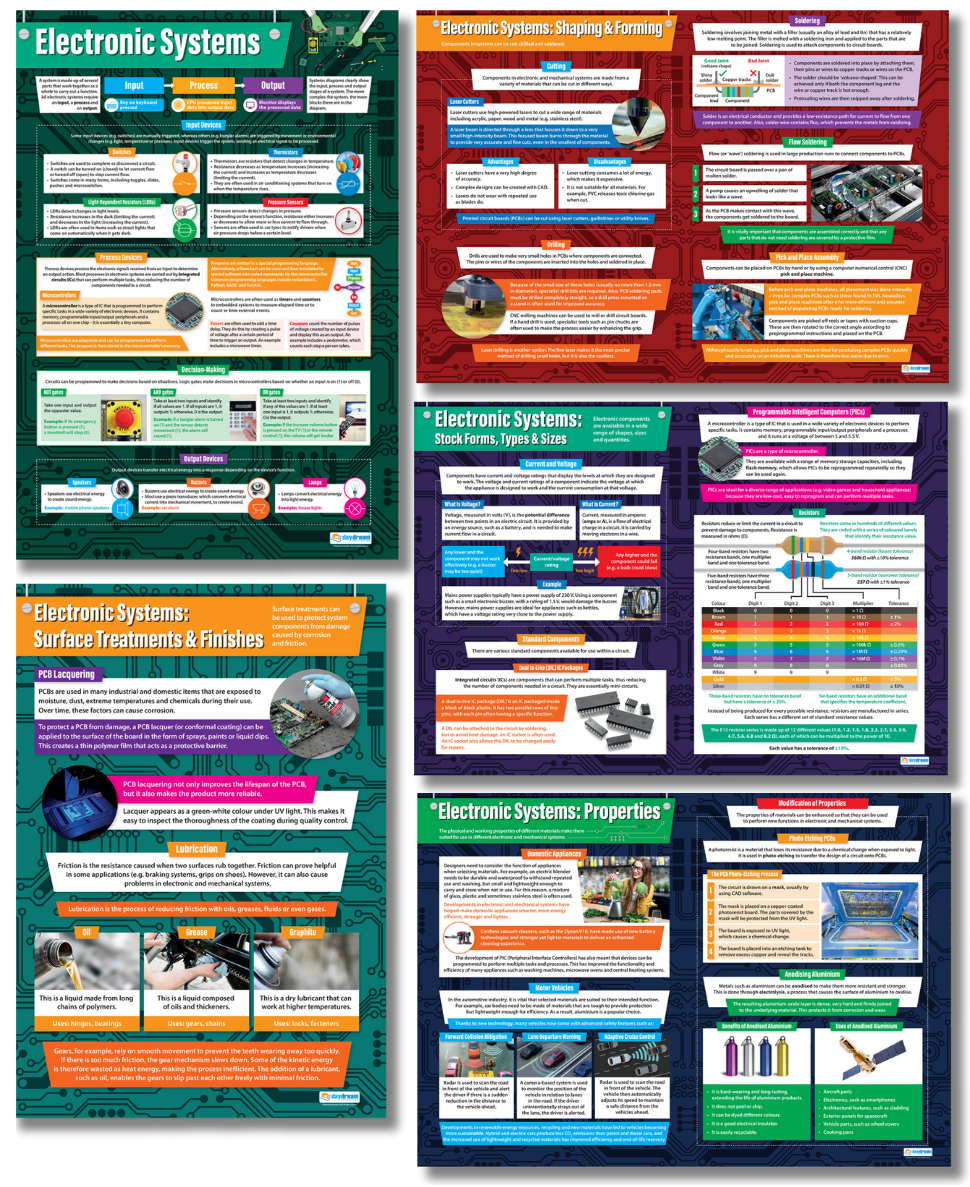

This Poster Set Includes:

1. Electronic Systems

Explains system diagrams, inputs, processes and outputs, including switches, sensors, microcontrollers and common output devices.

2. Electronic Systems: Shaping & Forming

Covers laser cutting, drilling PCBs, soldering methods, flow soldering and pick-and-place component assembly.

3. Electronic Systems: Stock Forms, Types & Sizes

Introduces voltage, current, DIL IC packages, PIC microcontrollers and a full resistor colour-code table for quick reference.

4. Electronic Systems: Properties

Explores material properties used in appliances, vehicles and PCBs, including photo-etching and anodising aluminium.

5. Electronic Systems: Surface Treatments & Finishes

Explains PCB lacquering (conformal coating) and lubrication methods used to reduce friction in electronic and mechanical systems.

Why Teachers Love This Set

✔ Curriculum-aligned for Secondary Design & Technology and STEM

✔ Engaging A1 visual format for whole-class teaching

✔ Ideal for revision, reference and classroom display

✔ Supports theoretical learning and practical electronics projects

✔ High-quality, durable print ideal for long-term classroom use

This complete set provides a solid foundation for students studying electronics, helping them improve understanding, increase confidence and apply knowledge to real-world design challenges.
