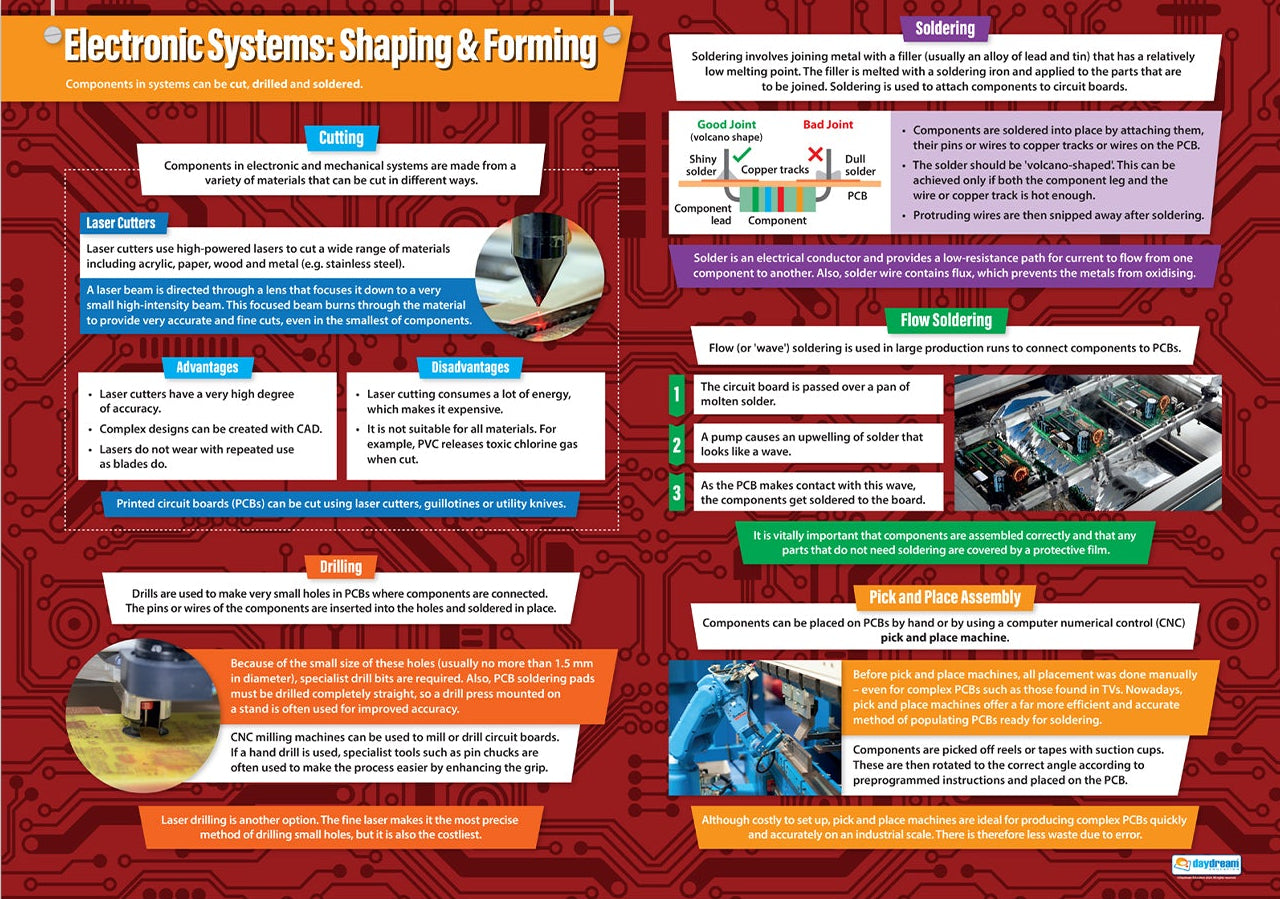

• A1 educational poster titled ‘Electronic Systems: Shaping & Forming’ featuring explanations of cutting methods, laser cutters, drilling PCBs, soldering, flow soldering and pick-and-place assembly. Includes diagrams, images and colour-coded text blocks on a red circuit-board themed background.
1 1

Daydream Education

Electronic Systems: Shaping & Forming Poster

Electronic Systems: Shaping & Forming Poster

DT083L

$36.00 AUD
$36.00 AUD
Sale Sold out
Taxes included.

The Electronic Systems: Shaping & Forming A1 poster is a highly visual, curriculum-aligned teaching aid designed to help students understand how components in electronic systems are shaped, cut and assembled during manufacture. Ideal for secondary Design & Technology lessons, this detailed chart breaks down key industrial processes in a clear, accessible format.

Students learn about essential shaping and forming methods such as cutting, drilling, laser cutting, pick-and-place assembly, and both hand soldering and flow soldering used in electronics production. Each process is illustrated with real-world examples and simple explanations, helping students connect theoretical learning with modern manufacturing techniques used in industry.

The poster highlights the advantages and disadvantages of laser cutters, demonstrates how PCBs are drilled and populated, and explains how soldering forms reliable electrical connections on circuit boards. Its vibrant layout, colour-coded sections and high-quality images make it an invaluable classroom reference during lessons, revision and project work.

Perfect for D&T classrooms, STEM workshops and electronics labs, the large A1 size ensures excellent readability from anywhere in the room.

Key Benefits

✔ Covers shaping and forming processes used in electronic manufacturing

✔ Clear explanations of laser cutting, drilling, soldering and PCB assembly

✔ Supports Years 7–12 Design & Technology and STEM curriculum

✔ Bright and engaging A1 design ideal for wall displays

✔ Helps students understand industrial-scale production and PCB fabrication

A must-have resource for teachers looking to support practical electronics education with clear, engaging visual content.

Perfect for:

  • Teachers
  • School pupils
  • Home-schooling parents

Versatile Usage:

  • As a teaching aid in classrooms
  • As a revision summary at home

📏 Specifications:

  • Dimensions: A1 Poster (840mm x 594mm)
  • Material: High-quality 170 GSM gloss paper with 70-micron laminated finish

Key Features:

  • 🌈 Colourful & Engaging: Captures attention and boosts interest
  • 💡 Improve Understanding: Simplifies complex topics
  • 🎓 Curriculum-Based: Designed to align with educational standards
  • 🌳 Eco-Friendly: Printed on FSC-certified paper

Our posters are laminated for durability, providing a water-resistant, anti-tear finish that’s easy to clean and built to last.

Important Update on Lamination:

We are transitioning to a new, thinner lamination as part of our supplier’s commitment to sustainable and cost-effective production. While you may receive a mix of older and newer laminations during this period, rest assured that both versions maintain the same high-quality standard you expect from Daydream Education.

We appreciate your feedback on the updated lamination to help us refine this change. Feel free to share your thoughts—we value your input!

Thank you for supporting our move towards more sustainable practices.
